AXIS AX1860NAV 12/24V 6.2″ MECHLESS with WAZE Navigation & WiFi – Short Chassis (98mm)
AXIS AX1860NAV 12/24V 6.2″ MECHLESS with WAZE Navigation & WiFi – Short Chassis (98mm)

AXIS AX1860NAV 12/24V 6.2″ MECHLESS with WAZE Navigation & WiFi – Short Chassis (98mm)

Regular price
$459.00
Sale price
$459.00
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

APPROXIMATE DISPATCH TIME FRAME IS BETWEEN 3 TO 10 BUSINESS DAYS.

AX1860NAV 12/24V 6.2″ MECHLESS with WAZE Navigation & WiFi – Short Chassis (98mm)

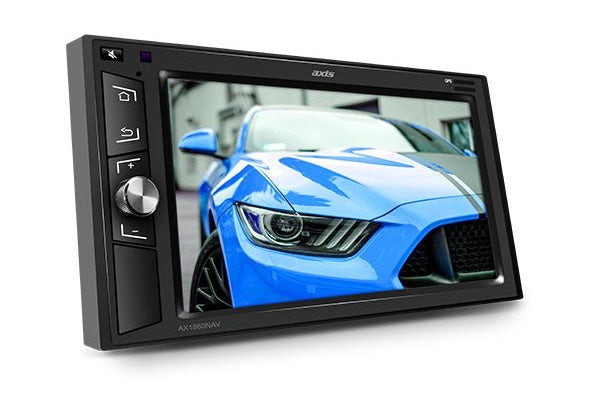

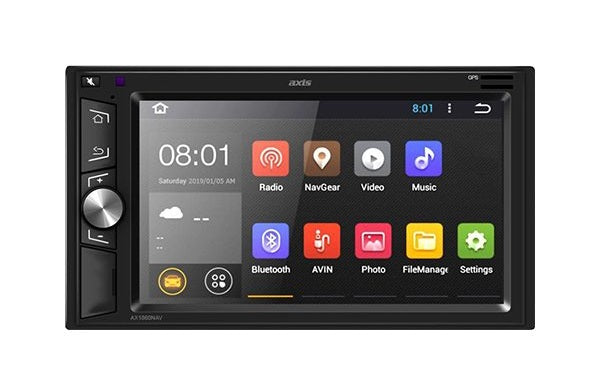

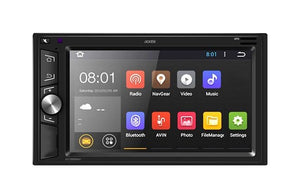

The AX1860NAV is a powerful 12/24V 6.2” HD LCD mechless multimedia system with Android OS, WiFi and Bluetooth. Display your Apple iOS Device via Wi-Fi or use Mirrorlink* to mirror and control the display of your Android device via Wi-Fi or USB. With a massive 12GB internal storage capacity and with a range of apps including Waze navigation, the AX1860NAV will guide you to your destination every time.

 SPECIFICATIONS:

GENERAL

– 6.2” HD Capacitive Touch LCD (800 x 480)

– Android 8.1.0 OS

– Quadcore T3 Processor -1.2GHz

– 1GB DDR3 RAM

– 16GB Flash

– Steering Wheel Control (Programmable)

– 12/24V DC Voltage

– -20° to +60°C Operating Temp

– 170W x 97Hmm Nose

– 178W x 100H x 65Dmm Overall

 TUNER

– Elite AM/FM Tuner

– FM 87.5-108MHz; AM522-1710KHz

– 30 Presets (18 FM/12 AM)

 AUDIO

– 4 x 50W Max Power

– 7 x EQ Presets

– 1 x Custom 12 Band EQ with Q Value Adjust

– Subwoofer Control: 80/120/160Hz, Level Adjust

– Loud/Mute

– 2 x RCA Pre-Out

– 1 x Sub RCA Pre-Out

 MULTIMEDIA

– Built-in WiFi

– Included Apps: Spotify, Chrome, Waze, Google Maps, YouTube

– Apple Display via WiFi*

– MirrorLink: Android Display via WiFi*,  Android 2-Way Control via USB*

– 12GB Internal Storage

– Supports External Hard Disk (up to 1TB)

– 2 x USB (2.0) with 800mm Leads (Rear)

– 1 x SD (Front)

– 1 x A/V RCA Input

– 1 x AUX Input (Front)

– 2 x Camera Input (Selectable)

– 1 x Video Output

– Audio Formats: MP3, WMA, AAC, WAV, APE, OGG, FLAC

– Video Formats: 1080p, DivX, RMVB, MP4

– Image Formats: JPEG, BMP, GIF, PNG

 BLUETOOTH

– A2DP Audio Streaming

– Phonebook & Search

– External Microphone

 NAVIGATION

– Includes: WAZE Navigation App

 INCLUDES:

– GPS Antenna

– ISO Harness

– Installation Brackets

– Handsfree Microphone

– 12/24V Reducer

– 2 Year Warranty



 * Compatible with most Apple Devices & Android Smart Phones.

Subject to iOS & Android OS updates.



https://audioxtra.com.au/wp-content/uploads/2019/01/AX1860NAV-Instruction-Manual-FINAL-2020.pdf
