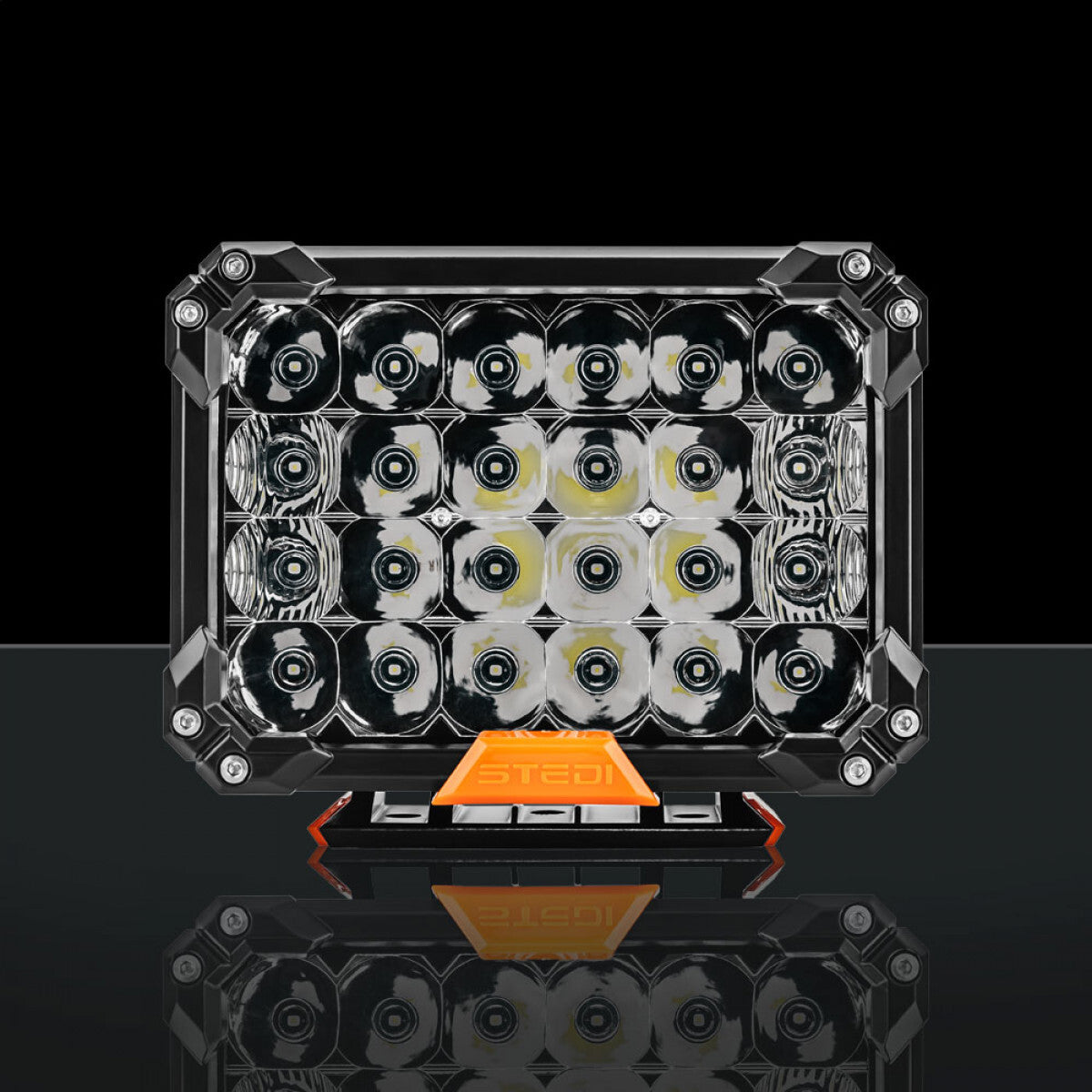

STEDI QUAD PRO LED DRIVING LIGHTS
DETAILS
The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.
KEY FEATURES
- Includes our legendary Easy-Fit plug and play high beam wiring harness
- IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
- 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
- Environmentally sealed Deutsch DT-2 connectors
- RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.

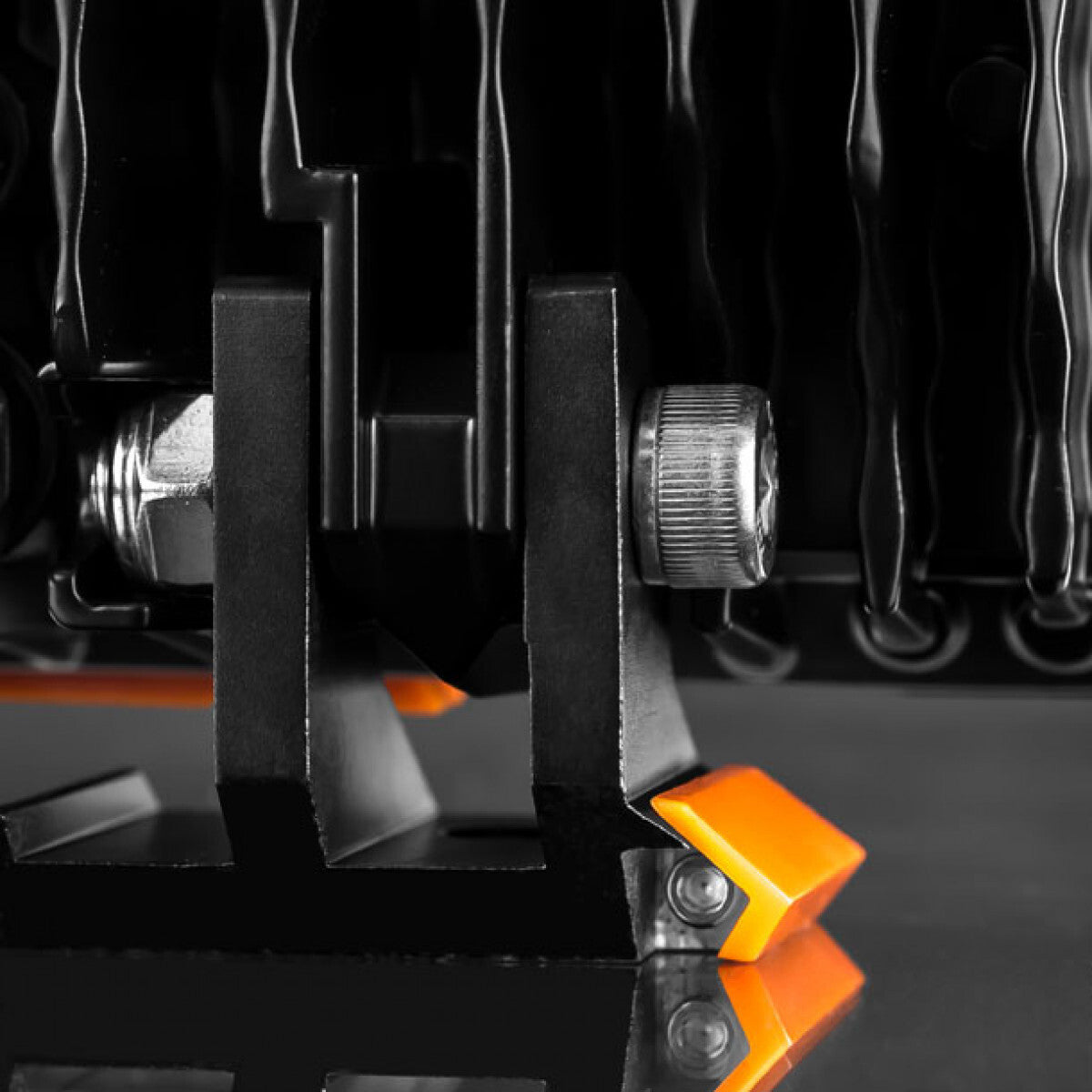

- High-Pressure Die-Cast Bracket
- Spread and Spot beam reflectors built-in.
The price quoted is for a pair includes our legendary Plug & Play Smart Wiring Harness.
SPECIFICATIONS
- LED - 24 x Oslon High-Flux LED
- RAW LUMENS - 17,040 (Pair)
- TESTED LUMENS - 11,360 (Pair)
- AMP DRAW - 7.4A @ 13.2v (each)
- POWER DRAW - 97W (each)
- CANDELA - 693,889cd
- BEAM PATTERN - 4 x Spread 20 x Pencil Beam
- INGRESS PROTECTION - IP68 | Submersible up to 3m
- COLOUR TEMP (CCT) - 5700K
- VOLTAGE COMPATIBILITY - 12v & 24v
- LUMEN MAINTENANCE - 50,000 LM-80
- WEIGHT - 1.4Kg (Including cover) (each)
PHOTOMETRIC DATA
- 10 m 6,938 Lx
- 50 m 277 Lx
- 200 m 17 Lx
- 300 m 7 Lx
- 400 m 4 Lx
- 500 m 7 Lx
- 833 m 1 Lx
WHAT’S IN THE BOX
- 2 x QUAD Pro LED Spot Lights

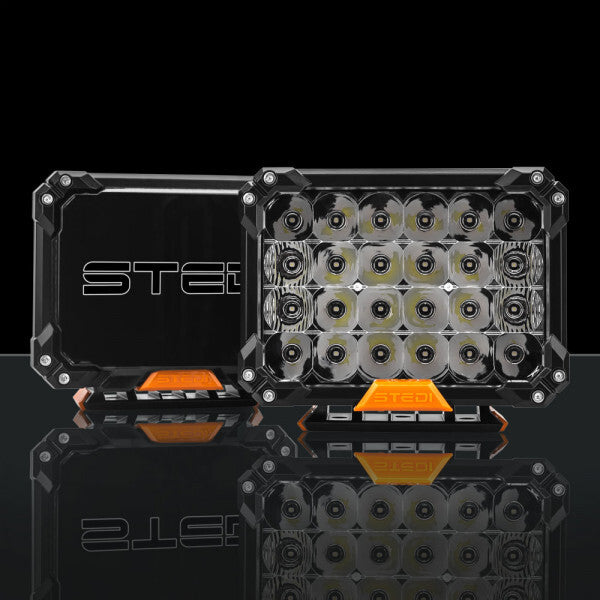

- 2 x STENCIL Black Out Covers
- 1 x Set Orange Colour Caps (fitted)
- 1 x Set Grey Colour Caps
- Easy Fit High Beam Wiring Harness
- H4 & HB3 adapters to High Beam
- Installation Manual
- Stainless fitting hardware
