STEDI TYPE-X SPORT 7” LED SPOT LIGHTS (LEDTYPE-X-SRT-7INCH)
STEDI TYPE-X SPORT 7” LED SPOT LIGHTS (LEDTYPE-X-SRT-7INCH)
STEDI TYPE-X SPORT 7” LED SPOT LIGHTS (LEDTYPE-X-SRT-7INCH)
STEDI TYPE-X SPORT 7” LED SPOT LIGHTS (LEDTYPE-X-SRT-7INCH)
STEDI TYPE-X SPORT 7” LED SPOT LIGHTS (LEDTYPE-X-SRT-7INCH)
STEDI TYPE-X SPORT 7” LED SPOT LIGHTS (LEDTYPE-X-SRT-7INCH)

STEDI TYPE-X SPORT 7” LED SPOT LIGHTS (LEDTYPE-X-SRT-7INCH)

Regular price
$419.99
Sale price
$419.99
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

STEDI TYPE-X SPORT 7” (LEDTYPE-X-SRT-7INCH)

DETAILS

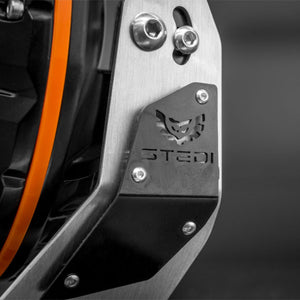

4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

A360.0 Cast Housing | Boasting superior strength and corrosion resistance.

3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant

100% Polyester UV and abrasion resistant powder coat

IP68 | Dust & Particle tight + Water-proof up to 3 meters

Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.

Environmentally Sealed Deutsch® DT-2 connector

EMI & RFI Suppression circuitry – We guarantee it.

Each 7" TYPE-X Sport comprises 32 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.

4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.

5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

SPECIFICATIONS

LED

32 x Osram Oslon SSL

RAW LUMENS

(Pair)

TESTED LUMENS

(Pair)

AMP DRAW

6.4A @ 13.2v (each)

POWER DRAW

85W (each)

CANDELA

cd

BEAM PATTERN

4 x Spread 28 x Spot Beam

INGRESS PROTECTION

IP68 | Submersible up to 3m

COLOUR TEMP (CCT)

5700K

VOLTAGE COMPATIBILITY

12v & 24v

LUMEN MAINTENANCE

50,000 LM-80

WEIGHT

kg (each)

PHOTOMETRIC DATA

10 M

 Lx

50 M

 Lx

200 M

Lx

300 M

Lx

400 M

Lx

1,000 M

Lx

1,050 M

 Lx



WHAT’S IN THE BOX

  • 2 x STEDI 7" TYPE-X Sport

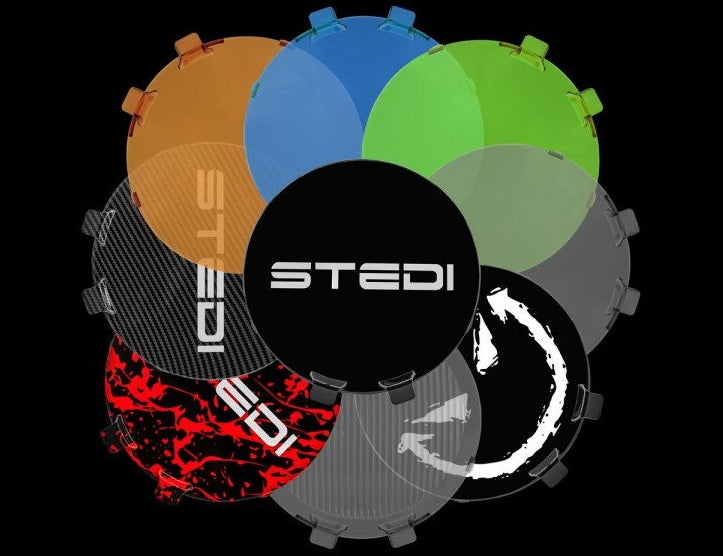

  • 2 x STEDI Black Out Covers
  • 1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
  • 3 Series Stainless Steel Nuts and Bolts
  • Rubber Shock Dampener
  • Wiring Instructions



Additonal Covers and Rings available here
