☝Select the insert size needed to suit your UHF from the drop down box above
APPROXIMATE DISPATCH TIME FRAME FOR ALL OUR ROOF CONSOLES IS ANYWHERE BETWEEN 2-3 WEEKS
STOCK LEVELS CHANGING DAILY. SHOULD THIS ITEM BE SOLD OUT WHEN YOU COMPLETE YOUR PURCHASE WE WILL NOTIFY YOU ASAP.
**THIS CONSOLE IS SUITED TO TOYOTA HILUX DUAL CAB & EXTRA/SPACE CAB UTES FROM MARCH 2005 UP TO AND INCLUDING SEPTEMBER 2015
- Standard Radio Surround
- Energy saving L.E.D. lights
- Microphone cable holder
- Lined storage locker
- Speaker holes to cater to existing roof microphone
The console comes with complete fitting instructions and front and rear mounting brackets with screws.
Front Interior/Reading Lights
When doors are shut switches operate lights independently as reading lights. When doors are opened both lights operate as interior lights.
Microphone Cable Holder
Microphone cable holder is supplied to keep radio cable neat and tidy and up out of the drivers view.
Lined Storage Locker Box
Lined storage locker box stops contents stored inside from rattling and possible damage against sides of locker box.
Bluetooth Speaker Holes
Bluetooth speaker holes are incorporated in the front of the console allowing clear speaking and hearing.
Smart Leather-Grain Finish
Leather-grain finish gives the console that "Part of the vehicle - not apart from it" look.
DIN size radio surround/storage tray is incorporated in console.
Optional Inserts For Smaller Radios
Inserts for smaller radios are available (Please see list below for your radio size) Feel free to message us if you are unsure which insert to order.
STANDARD DIN SIZE (171mm x 50mm) - no insert required
RC1 (128mm x 30mm)
RC2 (126mm x 36mm)

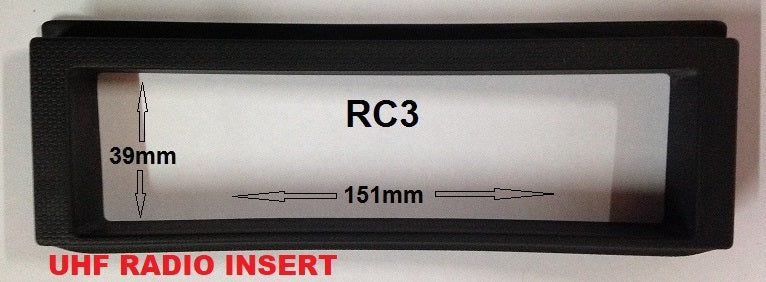

RC3 (151mm x40mm)
RC4 (102mm x 24mm)
RCBLANK - Blanking Insert
OR the radio insert can be swapped out for a 6 or 7 Switch Housing Unit (switches not included)
* 6 switch unit fits with RCTRAY in place and results in a slight 'gappy' fit
* 7 switch unit fits with RCTRAY removed.
Single Cabs 750L x 240W x 100H 4kg
Dual Cabs & Wagons 850L x 240W x 100H 4.5kg

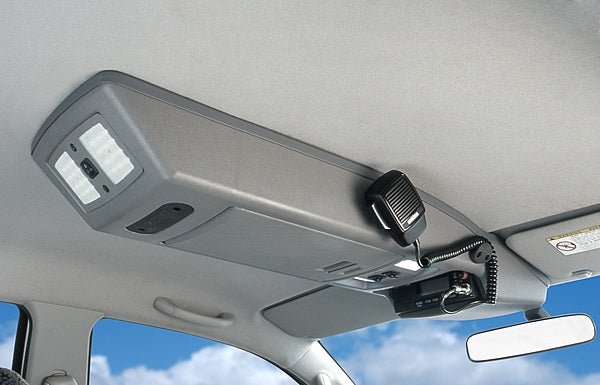

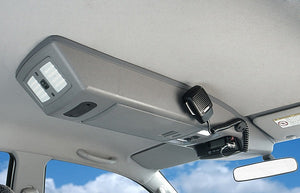

*picture shown may be generic photo of a roof console to suit a wagon or dual cab vehicle*
