TYPE-X PRO 8” LED SPOT LIGHTS (LEDTYPE-X-PRO)
TYPE-X PRO 8” LED SPOT LIGHTS (LEDTYPE-X-PRO)
TYPE-X PRO 8” LED SPOT LIGHTS (LEDTYPE-X-PRO)
TYPE-X PRO 8” LED SPOT LIGHTS (LEDTYPE-X-PRO)
TYPE-X PRO 8” LED SPOT LIGHTS (LEDTYPE-X-PRO)
TYPE-X PRO 8” LED SPOT LIGHTS (LEDTYPE-X-PRO)
TYPE-X PRO 8” LED SPOT LIGHTS (LEDTYPE-X-PRO)
TYPE-X PRO 8” LED SPOT LIGHTS (LEDTYPE-X-PRO)

TYPE-X PRO LED SPOT LIGHTS 8.5" (LEDTYPE-X-PRO)

Regular price
$689.99
Sale price
$689.99
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

TYPE-X PRO LED DRIVING LIGHTS (LEDTYPE-X-PRO)

DETAILS

ALWAYS ON THE CUTTING EDGE.

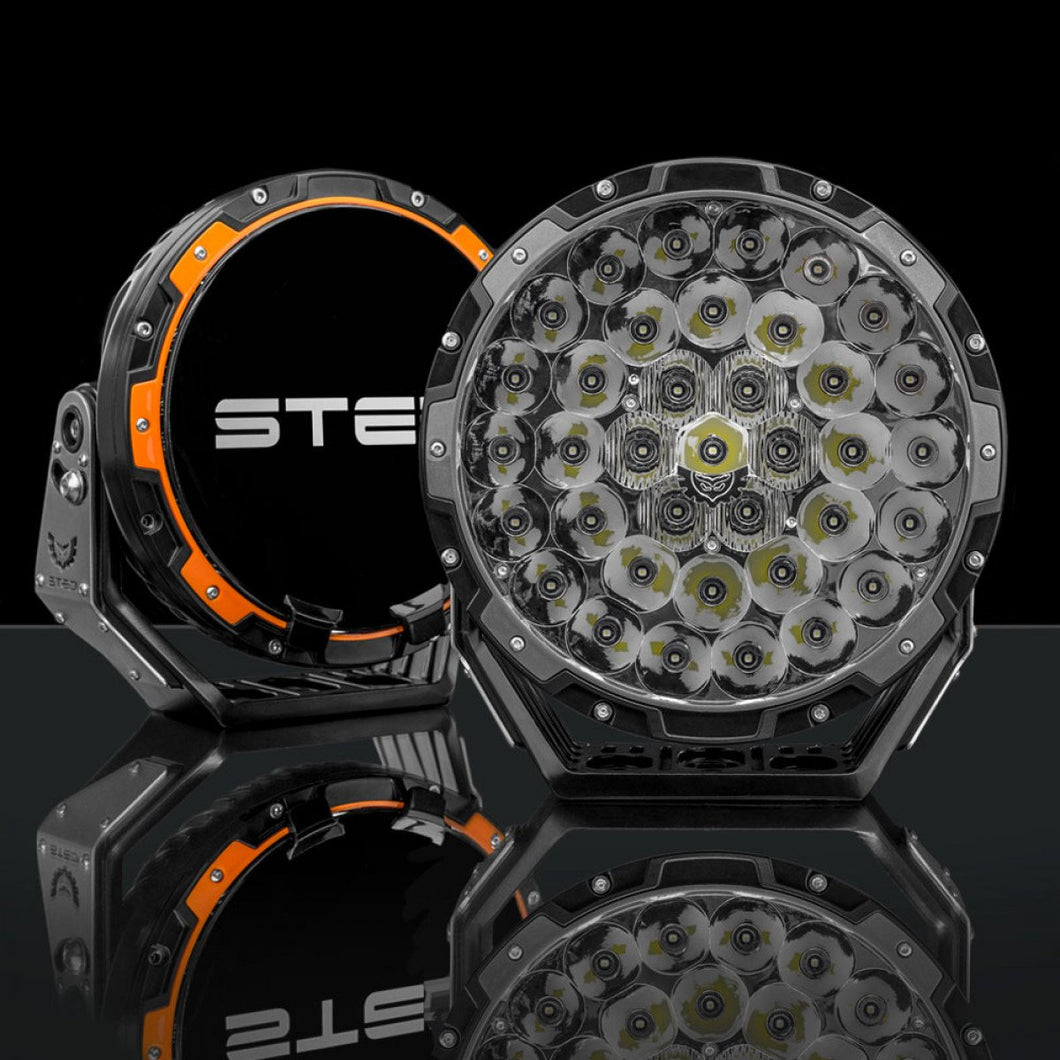

Cutting edge performance starts with cutting edge LED technology. To achieve genuine category-leading performance our Type-X™ Pro is equipped with 37 x Oslon High-Flux LEDs, selected for having the #1 highest lumen density per mm2 of any other comparable LED on the market. Compared to the two other leading spotlights brands similar offerings, the LEDs used in Type-X™ PRO have + 23% and +42% higher lumen density per mm2 in comparison. The net result is higher net light volume and unrivaled beam throw.

A WOLF IN WOLF’S CLOTHING

The hard-coated optical grade lens shares the same DNA as ballistic glass making it virtually indestructible. A UV stabilizer has also been added to ensure our lenses truly withstand the test of time with no discoloring or UV degradation. This has allowed us to do away with any secondary lens covers or filters which are known to significantly reduce light transmission.

ICONIC PERFORMANCE

Using the latest optic simulation modeling, the reflector geometry was tweaked over and over again to achieve a highly usable beam pattern.  No doubt the attention grabber is the unrelenting beam distance of 1,155m (tested in pairs, combo beam), however, the real strength of our Type-X™ PRO is in mid to long light distribution that really sets it apart.

Our key focus was on driver confidence, by increasing the beam throw the driver has longer analysis time. We maximized driver comfort by smoothing out the beam eliminating shadows. We reduced the light wasted in unimportant zones like treetops and immediately in front of the vehicle. The result is a homogeneous, unrelenting beam that will support you well in any adventure. .

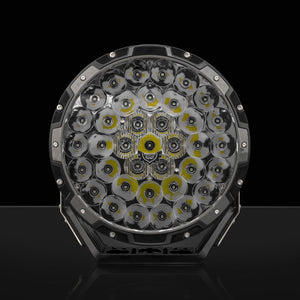

Unlike our competitors, each Type-X™ PRO lamp has 6 built-in flood reflectors for improved light distribution out into the road shoulders. The built-in wide-beam reflector eliminates the need to add any wide beam covers, which are not only less efficient at distributing light, covers also withhold valuable light transmission.

SPECIFICATIONS

LED

37 x Oslon High-Flux LED

RAW LUMENS

26,270 (Pair)

TESTED LUMENS

15,870 (Pair)

AMP DRAW

10.4A @ 13.2v (each)

POWER DRAW

137W

CANDELA

1,334,025cd

BEAM PATTERN

6 x Spread 31 x Pencil Beam

INGRESS PROTECTION

IP68 | Submersible up to 3m

COLOUR TEMP (CCT)

5700K

VOLTAGE COMPATIBILITY

12v & 24v

LUMEN MAINTENANCE

50,000 LM-80

WEIGHT

2.860kg (each)

PHOTOMETRIC DATA

10 M

13,340 Lx

50 M

533 Lx

200 M

33 Lx

300 M

14 Lx

400 M

8 Lx

1,000 M

1.3 Lx

1,155 M

1 Lx



WHAT’S IN THE BOX

  • 2 x STEDI Type-X PRO LED Driving Lights

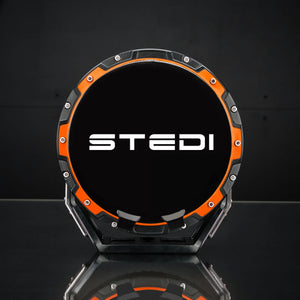

  • 2 x Protective STEDI Black Out Covers

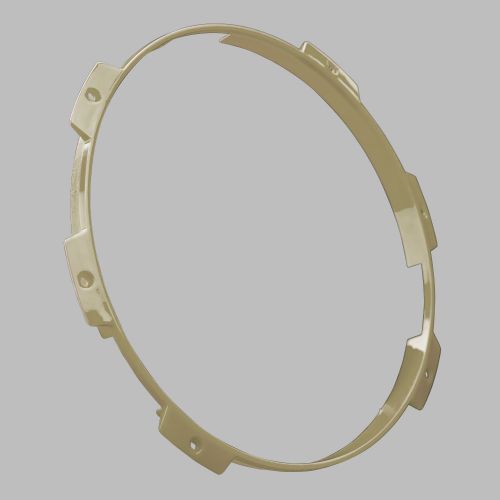

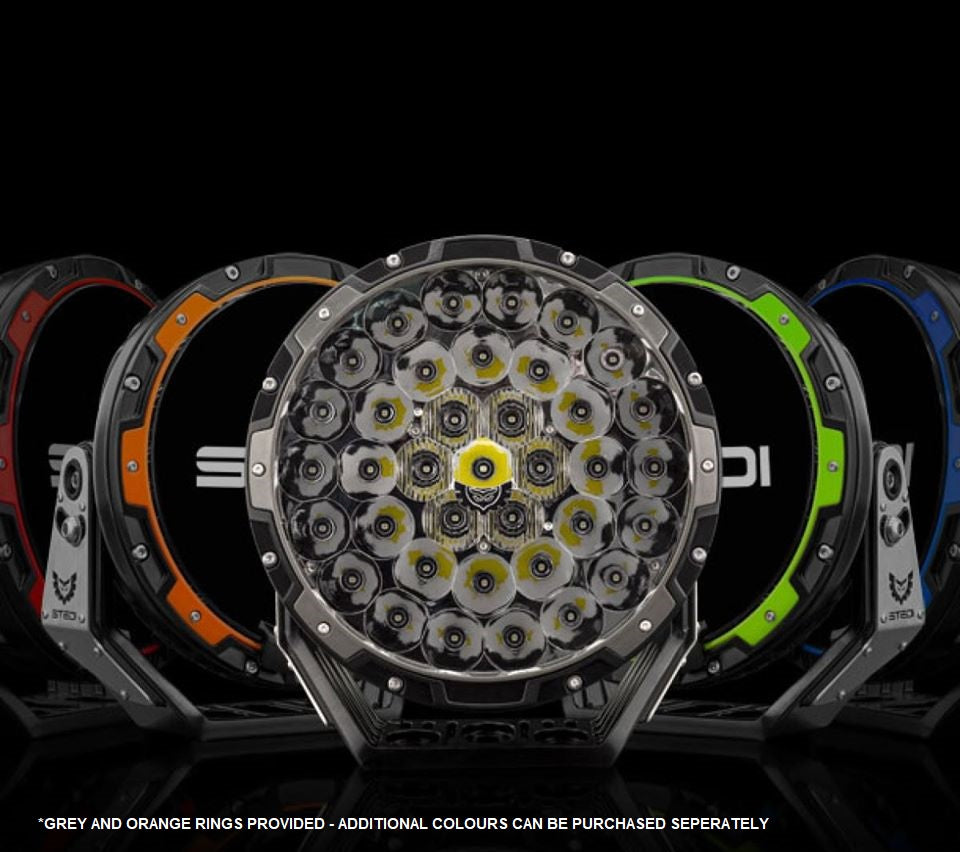

  • 2 x Grey Colour Rings
  • 2 x Orange Coloured Rings
  • 1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
  • Complete Stainless Steel fastener kit.
  • Wiring & Fitting Instructions

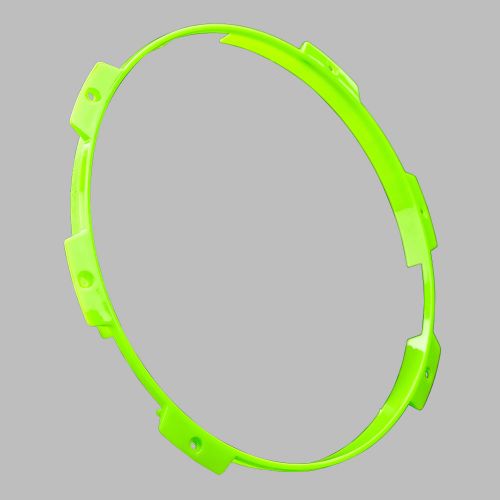

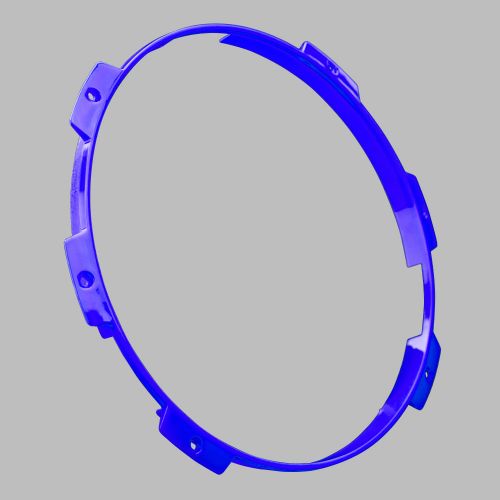

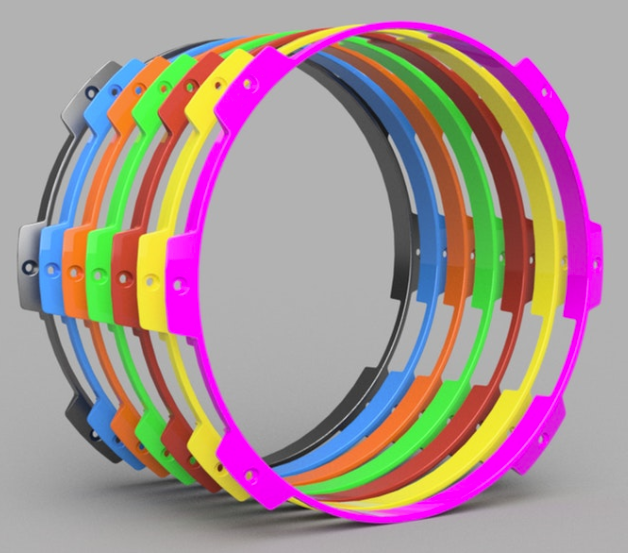

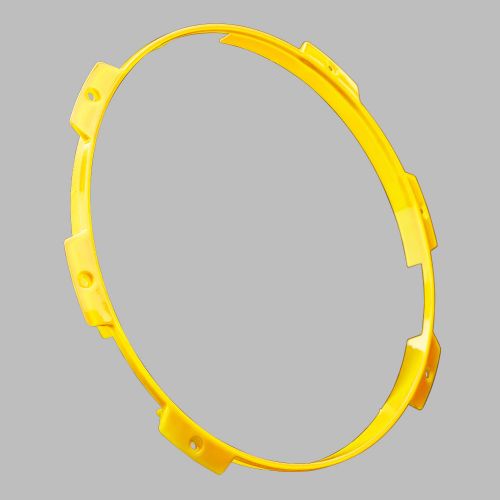

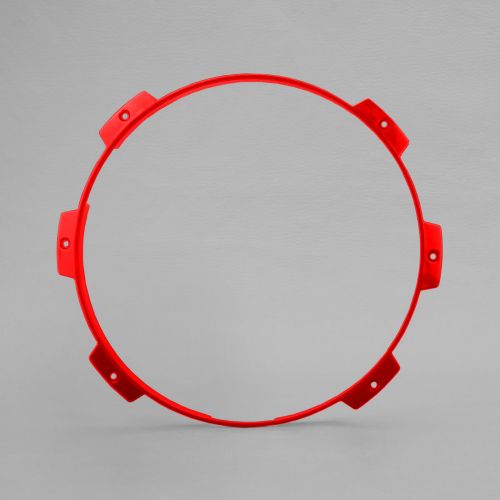

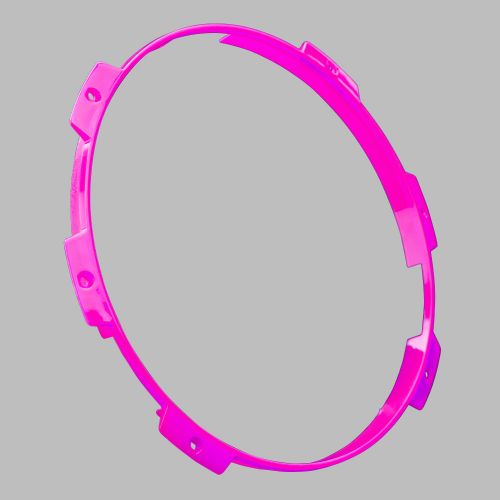

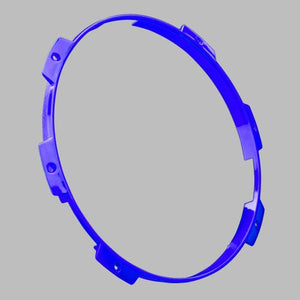

Additional Covers and Rings available here
